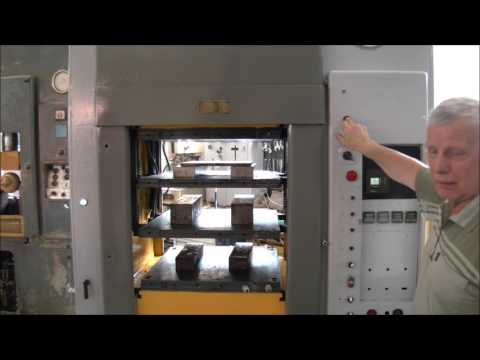

H Frame Hydraulic Press FO-TARNOBRZEG PHM 100 H

Category Hydraulic Presses FO-TARNOBRZEG
Manufacturer FO-TARNOBRZEG

ARCHIVED AD
H Frame Hydraulic Press FO-TARNOBRZEG PHM 100 H was manufactured by the machine manufacturer FO-TARNOBRZEG. Machine FO-TARNOBRZEG PHM 100 H was built in 1976 year.

General data

Location Poland
region Dolnośląskie
Year of manufacture 1976
Warranty Without warranty
Technical condition Good
Payment Before receipt
Transport The buyer organizes the transport at his own cost
Status A test can be performed

Technical parameters

Maximum force (pressing) 100 t
Maximum force (return) 50 t
Length of the working table 650 mm
Width of the working table 650 mm
Maximum distance between the tables 700 mm
Speed of the piston rod (without load) 80 mm/s
Speed of the piston rod (pressing) 3.3 mm/s
Speed of the piston rod (return) 82 mm/s
Maximum stroke of the ejector 160 mm
Power demand 5.5 kW
Oil tank capacity 170 l
High pressure 32 MPa
Low pressure 2.5 MPa
Machine height 2610 mm
Machine length 790 mm
Machine width 1610 mm
Machine weight 3 t

Equipment

NC control
Heating plates for processing plastics
Technical documentation
