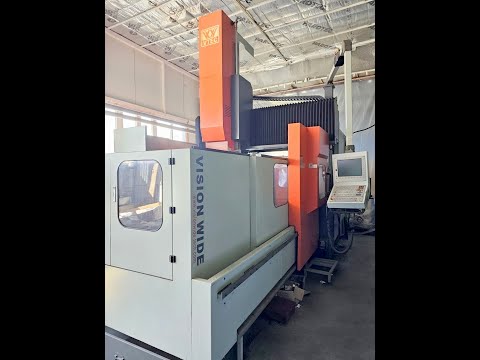

CNC Portal Milling Machine VISION WIDE VB-2016

Net price 354223 USD
Local tax (VAT) 23 %
Company name Maszyneria
Sławomir Konieczko
Address Wita Stwosza 18/13
City Jelenia Góra
Post code 58-560
region Dolnośląskie
Country Poland
Telephone +48 603510566
Category CNC Milling Machines and Machining Centers VISION WIDE ›
Manufacturer VISION WIDE ›
FREE AD
watch PDF ask print report abuse 2025-10-23
CNC Portal Milling Machine VISION WIDE VB-2016 was manufactured by the machine manufacturer VISION WIDE. Machine VISION WIDE VB-2016 was built in 2013 year.

General data

Location Poland
region Dolnośląskie
Year of manufacture 2013
Warranty Without warranty
Technical condition Very good
Payment Before receipt
Transport The buyer organizes the transport at his own cost

Technical parameters

Length of the working table 2000 mm
Width of the working table 1300 mm
Maximum table load (evenly distributed) 8000 kg
Power of the spindle drive 30 kW
Number of CNC controlled axles 5 pcs
Number of tools in the magazine 32 pcs
Maximum rotary speed of the vertical spindle 10000 1/min
Minimum distance of the spindle from the table 205 mm
Maximum distance of the spindle from the table 1225 mm
Travel length X-axis (mechanical feed) 2000 mm
Travel length Y-axis (mechanical feed) 1600 mm
Travel length Z-axis (mechanical feed) 1020 mm
Maximum feed rate in X-axis 250000 mm/s
Maximum feed rate in Y-axis 250 mm/s
Maximum feed rate in Z-axis 116.7 mm/s
Machine height 4043 mm
Machine length 7580 mm
Machine width 5355 mm
Machine weight 25 t

Equipment

HEIDENHAIN iTNC 530
Swivel head (2 axis)
CNC vertical head - indexed axis
Additional CNC rotary table
Liquid cooling system
