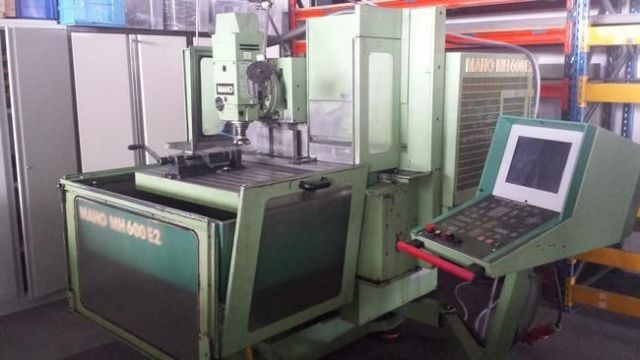

CNC Horizontal Machining Center MAHO MH 600 E2

Category CNC Milling Machines and Machining Centers MAHO
Manufacturer MAHO

ARCHIVED AD
CNC Horizontal Machining Center MAHO MH 600 E2 was manufactured by the machine manufacturer MAHO. Machine MAHO MH 600 E2 was built in 1989 year.

General data

Location Germany
region Baden-Württemberg
Year of manufacture 1989
Warranty Without warranty

Technical parameters

Length of the working table 900 mm
Width of the working table 480 mm
Power of the spindle drive 12 kW
Number of tools in the magazine 20 pcs
Minimum rotary speed of the spindle 20 1/min
Maximum rotary speed of the spindle 4000 1/min
Travel length X-axis (mechanical feed) 600 mm
Travel length Y-axis (mechanical feed) 400 mm
Travel length Z-axis (mechanical feed) 450 mm
Maximum feed rate in X-axis 100 mm/s
Maximum feed rate in Y-axis 83.3 mm/s
Maximum feed rate in Z-axis 100 mm/s
Machine height 2000 mm
Machine length 3000 mm
Machine width 2500 mm
Machine weight 2.8 t

Equipment

DECKEL CNC 432
Liquid cooling system
Lighting
