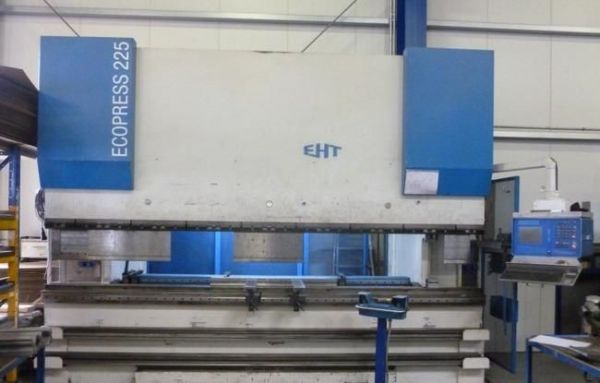

CNC Hydraulic Press Brake EHT ECOPRESS 225

Category Press Brakes EHT ›
Manufacturer EHT ›

ARCHIVED AD
CNC Hydraulic Press Brake EHT ECOPRESS 225 was manufactured by the machine manufacturer EHT. Machine EHT ECOPRESS 225 was built in 1998 year.

General data

Location Germany
region Bayern
Year of manufacture 1998
Warranty Without warranty

Technical parameters

Maximum force (pressing) 225 t
Maximum bending lenght 4050 mm
Maximum length of the slider stroke 240 mm
Maximum distance from the table to the slider 610 mm
Maximum approach speed 110 mm/s
Maximum bending speed 9 mm/s
Maximum return speed 130 mm/s
Machine height 3150 mm
Machine length 5850 mm
Machine width 3540 mm
Machine weight 15.7 t

Equipment

CYBELEC DNC 80
CNC control
