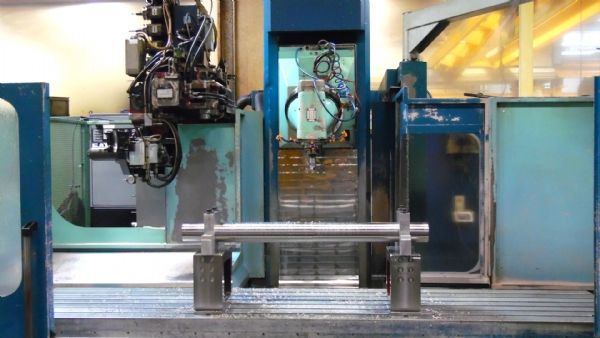

CNC Milling Machine SACHMAN T 10 HS

Category CNC Milling Machines and Machining Centers SACHMAN ›
Manufacturer SACHMAN ›

ARCHIVED AD
CNC Milling Machine SACHMAN T 10 HS was manufactured by the machine manufacturer SACHMAN. Machine SACHMAN T 10 HS was built in 2000 year.

General data

Location Italy
region Brescia
Year of manufacture 2000
Warranty Without warranty

Technical parameters

Length of the working table 3200 mm
Width of the working table 710 mm
Maximum table load (evenly distributed) 4000 kg
Power of the spindle drive 28 kW
Maximum rotary speed of the vertical spindle 4000 1/min
Travel length X-axis (mechanical feed) 3000 mm
Travel length Y-axis (mechanical feed) 1075 mm
Travel length Z-axis (mechanical feed) 900 mm
Maximum feed rate in X-axis 416.7 mm/s
Maximum feed rate in Y-axis 416.7 mm/s
Maximum feed rate in Z-axis 416.7 mm/s
Total power demand 28 kW

Equipment

HEIDENHAIN TNC 430 M
Liquid cooling system
