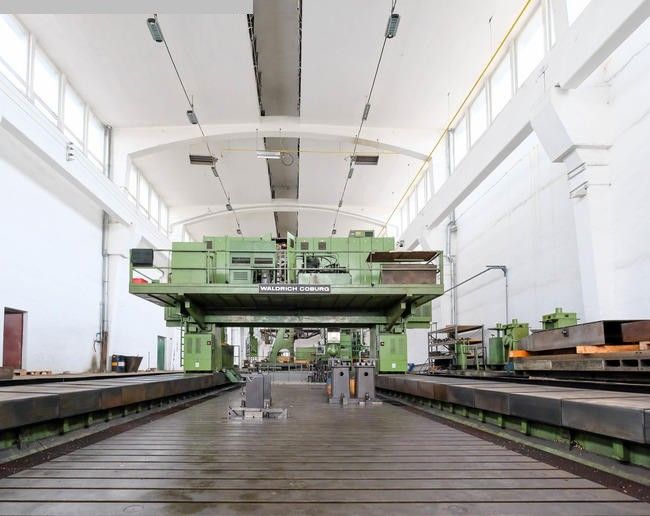

CNC Portal Milling Machine WALDRICH-COBURG 17-10 GMF 450 NC
| Category | CNC Milling Machines and Machining Centers WALDRICH-COBURG › |
| Manufacturer | WALDRICH-COBURG › |
ARCHIVED AD
CNC Portal Milling Machine WALDRICH-COBURG 17-10 GMF 450 NC was manufactured by the machine manufacturer WALDRICH-COBURG. Machine WALDRICH-COBURG 17-10 GMF 450 NC was built in 1988 year.
General data | |
|---|---|
| Location | Germany |
| region | Nordrhein-Westfalen |
| Year of manufacture | 1988 |
| Warranty | Without warranty |
| Stock number | 1020-14086 |
Technical parameters | |
|---|---|
| Length of the working table | 25000 mm |
| Width of the working table | 4500 mm |
| Maximum table load (evenly distributed) | 100000 kg |
| Number of synchronous axles | 75 pcs |
| Minimum rotary speed of the vertical spindle | 5 1/min |
| Maximum rotary speed of the vertical spindle | 2000 1/min |
| Maximum distance of the spindle from the table | 1900 mm |
| Travel length X-axis (mechanical feed) | 24500 mm |
| Travel length Y-axis (mechanical feed) | 5500 mm |
| Travel length Z-axis (mechanical feed) | 1400 mm |
| Maximum feed rate in X-axis | 166.7 mm/s |
| Maximum feed rate in Y-axis | 166.7 mm/s |
| Maximum feed rate in Z-axis | 83.3 mm/s |
| Total power demand | 200 kW |
| Machine height | 6500 mm |
| Machine length | 34000 mm |
| Machine width | 13000 mm |
Equipment | |
|---|---|
| no data | |
