CNC Vertical Machining Center RMT KOMPACT K 11
Category | CNC Milling Machines and Machining Centers RMT KOMPACT › |
Manufacturer | RMT KOMPACT › |
ARCHIVED AD
CNC Vertical Machining Center RMT KOMPACT K 11 was manufactured by the machine manufacturer RMT KOMPACT. Machine RMT KOMPACT K 11 was built in 2005 year.
General data | |
---|---|
Location | Italy |
Year of manufacture | 2005 |
Warranty | Without warranty |
Technical parameters | |
---|---|
Power of the spindle drive | 22 kW |
Number of tools in the magazine | 30 pcs |
Maximum rotary speed of the vertical spindle | 14000 1/min |
Travel length X-axis (mechanical feed) | 1100 mm |
Travel length Y-axis (mechanical feed) | 640 mm |
Travel length Z-axis (mechanical feed) | 700 mm |
Maximum feed rate in X-axis | 30000 mm/s |
Maximum feed rate in Y-axis | 30000 mm/s |
Maximum feed rate in Z-axis | 30000 mm/s |
Equipment | |
---|---|

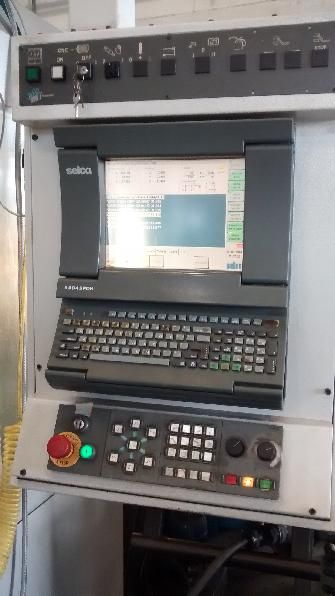

SELCA 4045 PDH |
