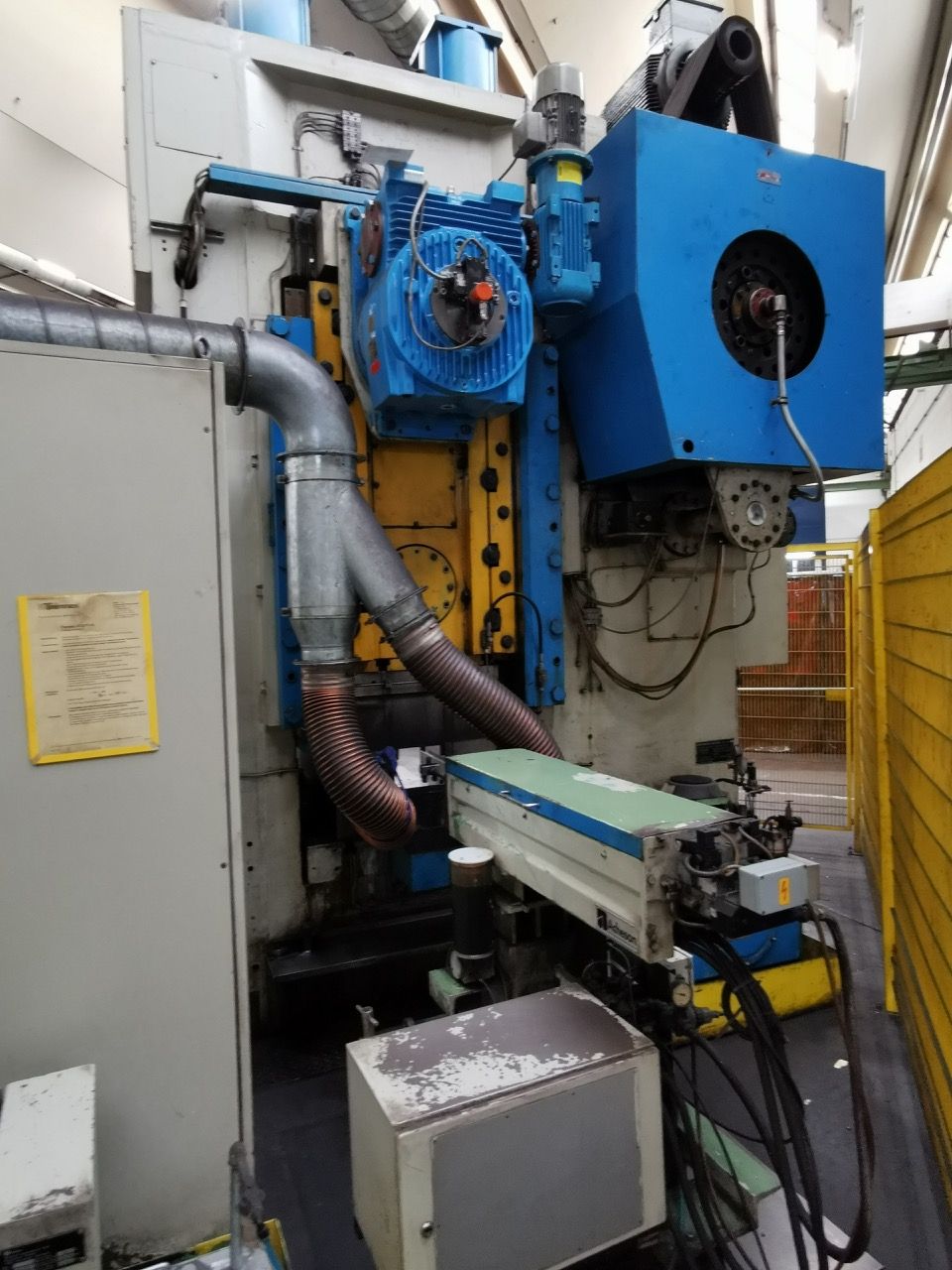

Knuckle Joint Press BARNAUL KB8342B, 1600T
Knuckle Joint Press BARNAUL KB8342B, 1600T was manufactured by the machine manufacturer BARNAUL. Machine BARNAUL KB8342B, 1600T was built in 1992 year.
General data | |
|---|---|
| Location | United Kingdom |
| Year of manufacture | 1992 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Loading | The seller organizes the loading - included in the price of the machine |
| Payment | Before receipt |
| Transport | The seller organizes the transport at a surcharge |
| Status | A test can be performed |
| Stock number | 779302 |
Technical parameters | |
|---|---|
| Nominal pressure force | 1600 t |
| Maximum force (pressing) | 1600 t |

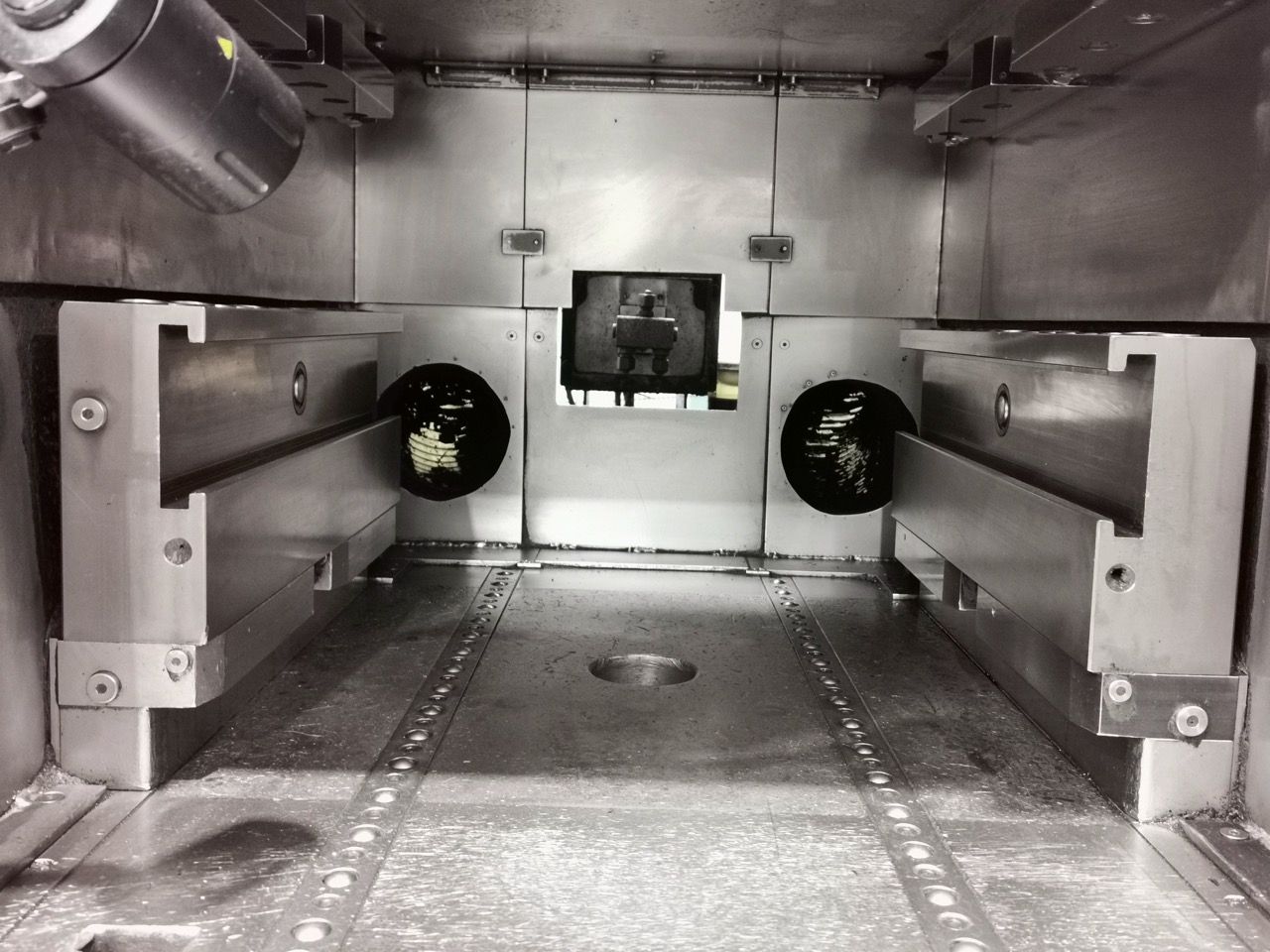

| Length of the bottom working table | 1000 mm |
| Width of the bottom working table | 1000 mm |
| Length of the upper table (slider) | 860 mm |
| Width of the upper table (slider) | 900 mm |
| Maximum number of strokes per minute (manual work) | 16 1/min |
| Maximum number of strokes per minute (automatic work) | 25 1/min |
| Maximum length of the slider stroke | 180 mm |
| Maximum stroke of the ejector | 160 mm |
| Power demand | 55 kW |
| Machine height | 4110 mm |
| Machine length | 3480 mm |
| Machine weight | 47 t |
Equipment | |
|---|---|
| Technical documentation | |
